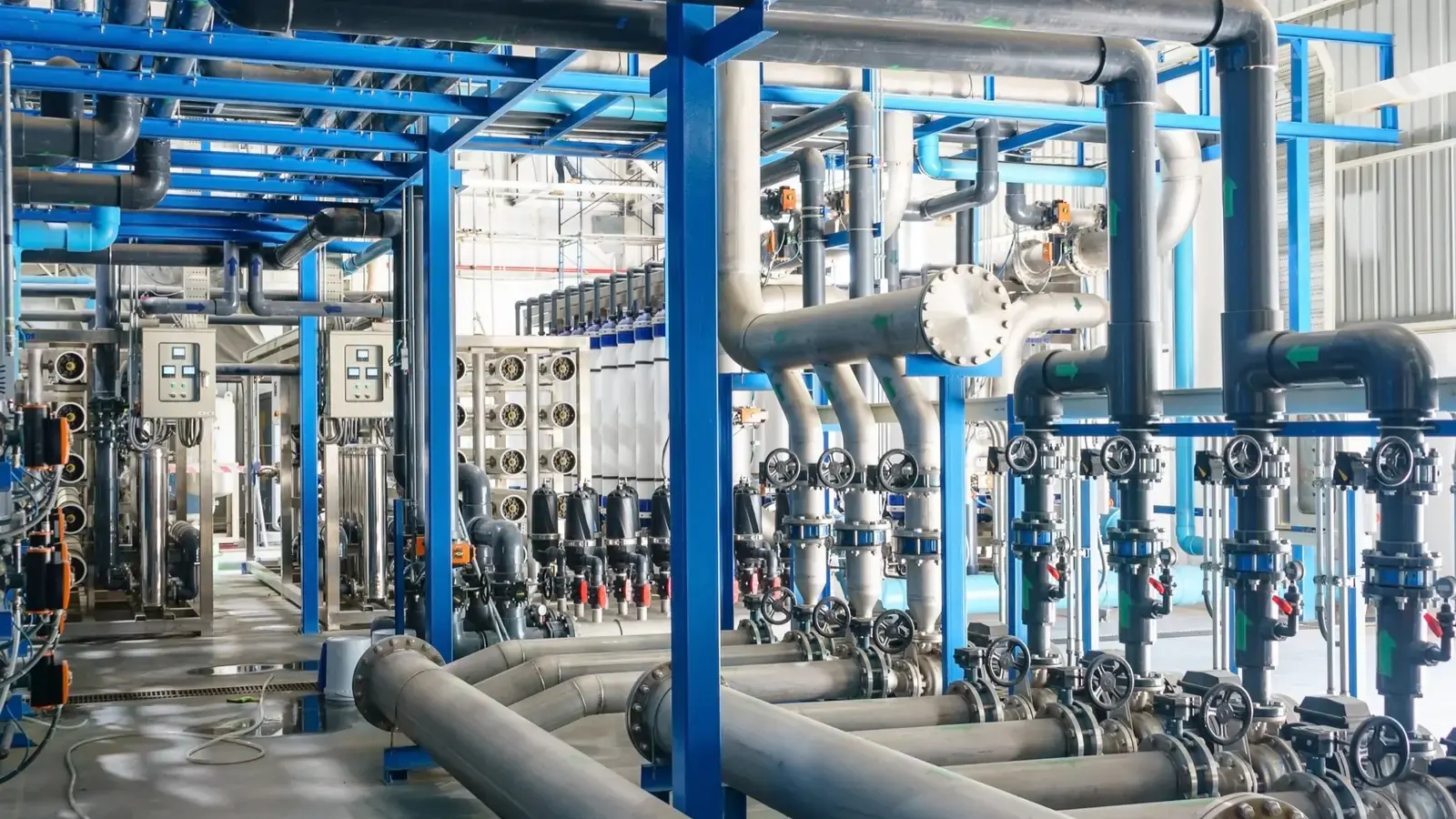

A new pump system should be selected for the work the complete system must perform, not just for a pipe size, an old nameplate, or a single peak-flow number. The design basis connects the site's operating requirements to pump selection, controls, maintenance access, and a commissioning test that can be repeated later.
Define the operating envelope
Start with the fluid and the range of conditions the system will actually see. A useful project brief includes:
- Minimum, normal, and maximum required flow, plus how long each condition lasts.
- Required pressure or level at the point of use, not only at the pump discharge.
- Available suction pressure or liquid level at the least favorable operating condition.
- Liquid temperature, solids, viscosity, and materials compatibility where applicable.
- Existing piping, elevation changes, valves, strainers, and future connections.
- The consequences of one pump, sensor, or power source being unavailable.
Peak duty matters, but equipment that spends most of its life far from its intended operating range can create avoidable energy, vibration, and maintenance problems. A design basis should therefore identify the normal duty as clearly as the maximum duty.
Compare the system curve with candidate pump curves
Static elevation or pressure requirements and flow-dependent friction losses combine into a system curve. The pump's expected operating point is where its performance curve meets that system curve. If the system has multiple operating modes, review more than one curve or duty point: a valve position, tank level, process demand, or parallel-pump combination may change the result.
For each candidate pump, review the head-flow curve together with efficiency, input power, available impeller or speed range, and the manufacturer's stated operating region. Check the full duty envelope rather than choosing the first curve that reaches peak flow. A variable-frequency drive can move the pump curve, but it cannot correct a poor hydraulic match in every condition.
Verify the suction side and equipment arrangement
Suction conditions deserve their own calculation. Review the net positive suction head available at the pump under unfavorable liquid level, temperature, and suction-loss conditions, then compare it with the manufacturer's requirement and the margin appropriate to the application. Also examine suction piping geometry, air entry, strainer loss, and how multiple pumps interact with a common header.
The physical arrangement affects future service. Provide realistic access for isolation, lifting, seal and bearing work, valve operation, and instrumentation. A pump that fits the curve but cannot be maintained or tested easily is not a complete selection.
Specify controls and acceptance together
Controls should follow the hydraulic design. Define start and stop conditions, staging or alternation, minimum-flow protection where needed, low-suction response, alarm priorities, and what the system should do after a fault or power return. Identify the readings needed to prove performance: flow, suction and discharge pressure, speed, current, and relevant levels or temperatures.
At startup, record those measurements at representative operating conditions. Test the sequence, alarms, and standby response as well as the pump itself. The resulting baseline helps operators distinguish a later equipment fault from a changed system curve.
Bring a useful package to the first conversation
Existing drawings, a process description, available duty points, site photographs, controls expectations, and a project schedule are enough to start. Missing information should be identified before a pump is committed to the project, not treated as an assumption hidden in a quotation.
RMS Pump supports sales and engineering conversations for new municipal, commercial, water, wastewater, and critical-facility pump systems across Oregon and Washington. The best starting point is the system requirement, followed by an equipment and controls path that can be checked in the field.
